Schluter Systems DITRA-XL Ceramic Tile Underlayment Roll

DITRA-XL Ceramic Tile Underlayment Roll by Schluter Systems

$336.23


Schluter Systems DITRA-XL Ceramic Tile Underlayment 175 SF ROLL

175 Square Foot Roll 5/16" Thickness

Replaces the need for cement board

A lightweight, thin, uncoupler and waterproofing product that offers no loss of vertical strength for building upon

39 inch wide product

Schluter Systems Ditra-XL Ceramic Tile Underlayment

Ditra

  • Allows independent movement between the sub floor and the finished surface.
  • Protects the sub floor from moisture penetration.
  • Replaces second layer of plywood for ceramic tile installation.
  • Exclusively designed for ceramic and stone tile surfaces.
  • Neutralizes stress between sub floor and tile surface, eliminating the main cause of cracking.
  • Waterproofs and allows moisture in the substrate to evaporate.
  • Apply over single layer 5/8" plywood, with 16" on-center joist spacing, with tongue-and-groove plywood.
  • Apply over OSB.
  • Apply over concrete even concrete that has cured less than 28 days.
  • Apply over cracked concrete.
  • Apply over damp basement floors.
  • Ideal for interior and exterior tile and stone installations

Function

Ceramic and stone tiles are durable, easy to maintain, and hygienic, representing the ideal surface coverings. However, today's lightweight construction methods can make the installation of hard surface coverings particularly challenging. In order to protect the integrity of the tile assembly, an underlayment that performs multiple functions is required.

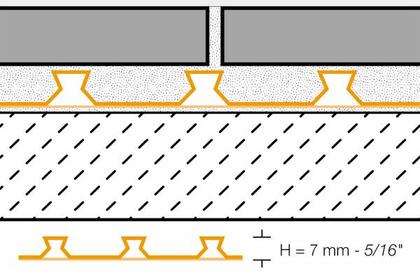

Schluter-DITRA-XL is a polyethylene membrane with a grid structure of square cavities, each cut back in a dovetail configuration, and an anchoring fleece laminated to its underside. Schluter-DITRA is bonded to the substrate using thin-set mortar. The anchoring fleece on the underside of Schluter-DITRA-XL is engaged in the mortar to provide a mechanical bond to the substrate. Tile is installed over Schluter-DITRA-XL using the thin-bed method in such a way that the mortar becomes mechanically anchored in the square, cutback cavities of the Schluter-DITRA-XL matting.

Designed specifically for ceramic tile and dimension stone installations, Schluter-DITRA-XL serves as an uncoupling layer, waterproofing membrane, and vapor management layer that accommodates moisture from beneath the tile covering. Further, DITRA-XL performs all these functions while still providing adequate support/load distribution for the tile covering:

  1. Uncoupling Tile has been successfully installed for thousands of years by incorporating an uncoupling layer, or forgiving shear interface, within the tile assembly. Schluter-DITRA-XL provides uncoupling through its open rib structure, which allows for in-plane movement that effectively neutralizes the differential movement stresses between the substrate and the tile, thus eliminating the major cause of cracking and delaminating of the tiled surface.
  2. Waterproofing Schluter-DITRA-XL provides reliable waterproofing in interior and exterior applications. Its polyethylene composition protects the substrate from moisture penetration, which is particularly important in today's building environment where most substrates are moisture sensitive.
  3. Vapor management The distinguishing feature of Schluter-DITRA-XL is the existence of free space created by the configured channels on the underside of the matting. The free space provides a route for excess moisture and vapor to escape from the substrate that could otherwise cause damage to the tile layer above. Thus, DITRA-XL effectively manages moisture beneath the tile covering.
  4. Support/load distribution When placed on a solid foundation, columns or pillars can support tremendous loads. The same physical principle applies to Schluter-DITRA-XL installations. Columnlike mortar structures are formed in the cutback cavities of the matting. Loads are transferred from the tile covering through these column-like mortar structures to the substrate. Since DITRA-XL is virtually incompressible within the tile assembly, the advantages of uncoupling are achieved without sacrificing point load distribution capabilities. The ability of DITRA-XL installations to support and distribute heavy loads while preserving the integrity of the tiled surface has been verified through extensive laboratory and field testing.
